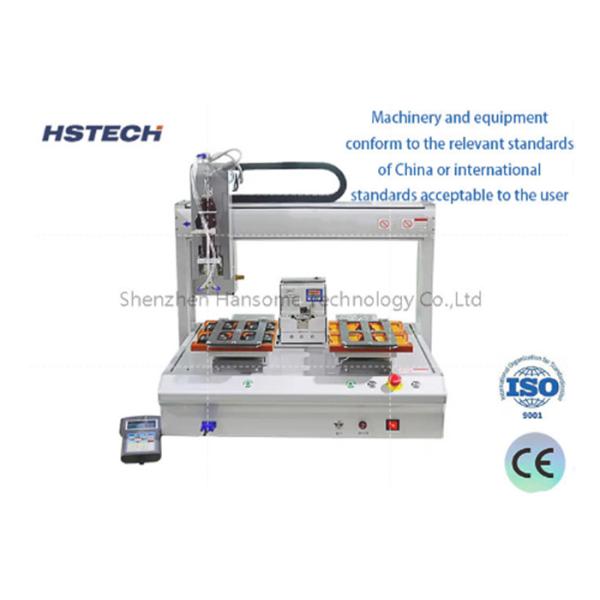

Screw Fastening Machine with High Precision Hiwin Guide Automatic Production Line

  • 1
  • 2

Brand Name : HSTECH

Model Number : HS-SL551S

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100pcs per month

Delivery Time : 7~9 work days

Packaging Details : Wooden package, foam inside

Product name : Desktop Screw Tightening Robot

Feeding : pick-up screw

Axis : 3 axis

Screws : M1-M6

Moving Range : 500*500*100mm

Material : Main Aluminum

Port : Shenzhen

Oem : Yes

Contact Now

Screw Fastening Machine with High Precision Hiwin Guide Automatic Production Line
Introduction
The screw machine is composed of a feeding system and a lock-locking system, where in the feeding part, also called a screw-arrangement machine or a screw feeder, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. It's a automation equipment, widely used in the electronics industry. It compatible for screws from M1 to M6.
Specification
Model HS-SL551S HS-SL661S
Production name Automatic Screw Locking Machine
Moving range(X/Y/Z) 500*500*100mm 600*600*100mm
X/Y axis moving speed Closed loop motor :1-800mm/s
Z axis moving speed Closed loop motor: 1-300mm/s
X/Y axis max load Closed loop motor: 5KG
Z axis max load Closed loop motor: 3KG
Power supply AC110V/220V, 50/60Hz
Repeat accuracy ±0.02mm
Document support CAD CorelDraw
Suitable screws M1-M5
Machine dimension 746*785*800mm 845*885*800mm
Machine weight 50kg 55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1.Suction feeding enhances speed & efficiency.
2.Desktop-friendly, compatible with auto production lines.
3.Movement ranges: 500x500x100mm or 600x600x100mm.
4.Multi-screw bin suction support.
5.Versatile for locking, dispensing, welding, testing, handling, & assembly.
6.Multiple axis & dual platform options.
7.Regional & platform replication, batch editing, one-step operation.
8.Offline operation with downloaded/saved parameters.
9.Stores hundreds of files, each with 1000 screw bits, for on-demand access.
