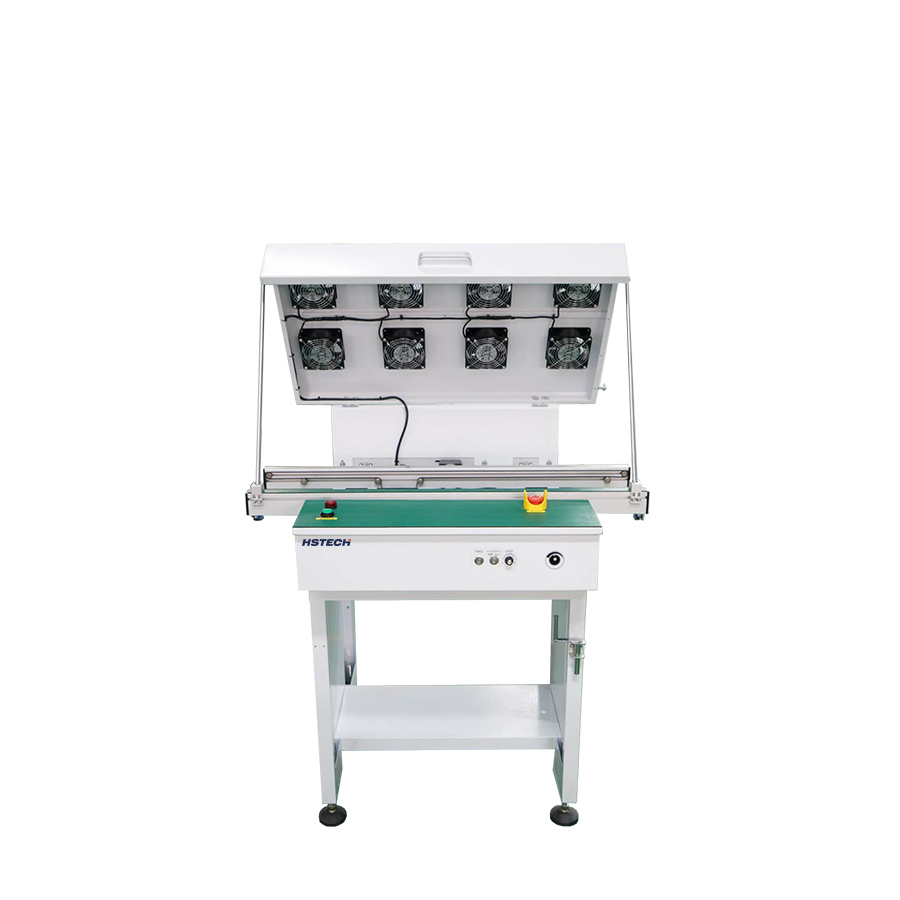

PCB conveyor with cooling fans green belt type roller type PCB buffer

Name: PCB conveyor with cooling fans green belt type roller type PCB buffer
Brand: HSTECH
Price: 1 USD

Wholesale PCB conveyor with cooling fans green belt type roller type PCB buffer from china suppliers

Brand Name : HSTECH

Model Number : HS-460-CY

Certification : CE

Place of Origin : China

MOQ : 3 sets

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, D/P

Supply Ability : 500 pcs per month

Delivery Time : 10~14 days

Packaging Details : Wooden box

Product name : SMT Conveyor

Other name : Link Conveyor

Color : Blue,Grey,white

Transport belt : ESD flat belt

Belt thickness : 1.0 mm

Voltage : 1P AC 110V/220V 50/60HZ

Warranty : 1 Year

Packing : Wrap, wooden box

Contact Now

PCB conveyor with cooling fans green belt type roller type PCB buffer

Features

1. Reduce standard precision screws to ensure narrow and stable adjustment.
2. Adopting professional wear-resistant and anti-static flat belt, specially designed 3.0mm thick aluminum profile track to ensure smooth connection and smooth transportation.
3. Connect the standard signal line to other devices online.
4. According to customer requirements, we can produce feeders with different lengths of guide rails.
5. The working face adopts anti-static rubber to better prevent static electricity.
6. The transmission motor adopts two 42 * 48 stepper motors.

Specification

Model		HS-C600/HS-C1000
Power Supply		AC220V or AC110V 50/60Hz
PCB Size		5050~500390mm
Width adjustment		Hand crank
PCB Direction		Left to right or right to left
Transmission Height		900 ± 20 mm
Transmission Speed		0.5-20 meters per minute adjustable
Track fixed side		front side fixed( or back side fixed for option)
Machine Length		0.5M/0.6M/0.8M/1M/1.5M
Options		Light,Fan,Magnnifying,Cover,Inspection

PCB conveyor with cooling fans green belt type roller type PCB buffer

PCB conveyor with cooling fans green belt type roller type PCB buffer Images
