LCD Screen Operation 4 Axis Glue Dispensing Machine with Vacuum Device
Machine feature
1. PC computer LCD screen operation, easy to program, easy to learn and understand.
2. It has the functions of drawing points, lines, faces, arcs, circles, and continually tween of irregular curves to realize any 3D non-planar track path.
3. The volume of the glue, the speed of the glue, the time of dispensing, and the time of stopping the glue can all be programmed.
4. With the special dispensing controller, the glue output is stable, the glue is clean and the glue is not leaked.
5. Quickly dot, draw lines and draw circles in the inner, outer wall, vertical surface, gap and spherical surface of the product.
6. According to the needs of customers, it can be equipped with fixtures, glue guns, controllers, heating temperature control devices, etc.
Specification
| ITEM | SPEC |
| Glue Mixing Ratio | 1:1-10:1/Customizable |
| Dispensing Speed | 10-150g/5s(based on 1:1 glue proportion) |
| Dispensing Precision | Glue Amount±1%, Glue Proportion±1% |
| X/Y/Z Working Range | 300*300*100mm(Z axis can be rotated) |
| XYZ Speed | Max 300mm/s |
| Drive System | Stepping Motor + Timing Belt |
| Repeatability | ±0.02mm |
| Pattern | Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation |
| Potting Precision | Amount±1%, Ratio:±1% |
| Operation Method | Auto |
| Programming | Teach Pendant |
| Control | Board card |
| Leak-proof Function | |
| Weight | 65kg |
| Dimension(L*W*H) | 716*585*645mm |
| Power Supply | 220V 50-60Hz 350W |
About Packaging
|
|

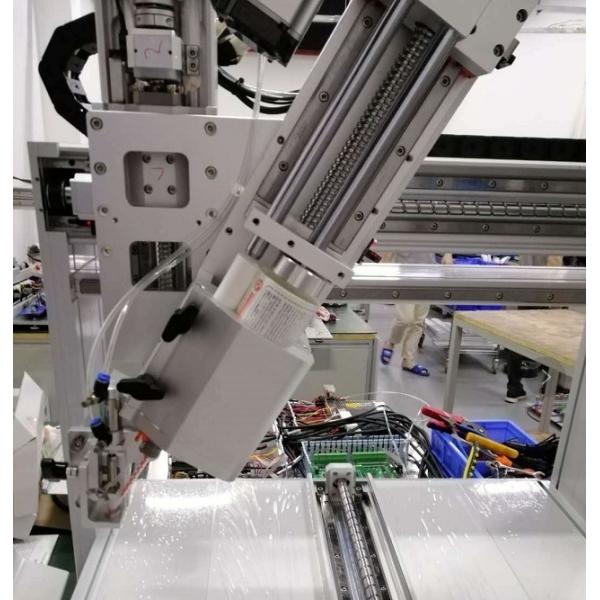

LCD Screen Operation 4 Axis Glue Dispensing Machine with Vacuum Device Images
|
